SKY15-P20
Military Target Acquisition Display
- Military Target Acquisition Display
- Extended Temperature -40°C to 60°C
- Anti-Shock : 20mm Cannon Shock Resistance
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 2.2 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 20G
- Sunlight Readable 1000 Nits
- 20 Programmable Function Keys
- Heavy-Duty Rugged Aluminum
- 18V~36V (28V) Ground Vehicle Power
- MIL-461 EMI Filter By Options
- Technical Profile
- Specifications
- Thermal Solution
- 동영상
Technical Profile
- Introduction
-
Next-Generation Rugged Artillery Targeting UAV Display Enhances Precision and Battlefield Durability
The SKY15-P20 rugged smart panel displays feature brightness up to 1000 nits, a night vision imaging system (NVIS) below 1% nits, bonded protective glass (GFG), and touch screens. SKY15-P20 also offers optional features such as EMI filtering / EMI mesh shielding and anti-reflection/anti-glare (AR/AG) coatings, depending on customized requirements. With 20 programmable function keys, the rugged panel displays are also built with IP65-rated waterproof and dustproof all-aluminum housings, supporting an extended operating temperature range from -40°C to 60°C and flexibly accommodating a wide DC power input range from 9V to 36V.
- Unique Features
-
(1) Sunlight Readable up to 1000 Nits
The SKY15-P20 ruggedized smart display is sunlight-readable, designed to perform in high ambient light conditions such as direct sunlight. It adopts our advanced optical bonding process, which reduces internal reflections by allowing light to pass through bonded layers and be absorbed into the screen. This optical bonding is essential for enhancing sunlight readability.
(2) Night Vision Mode Support

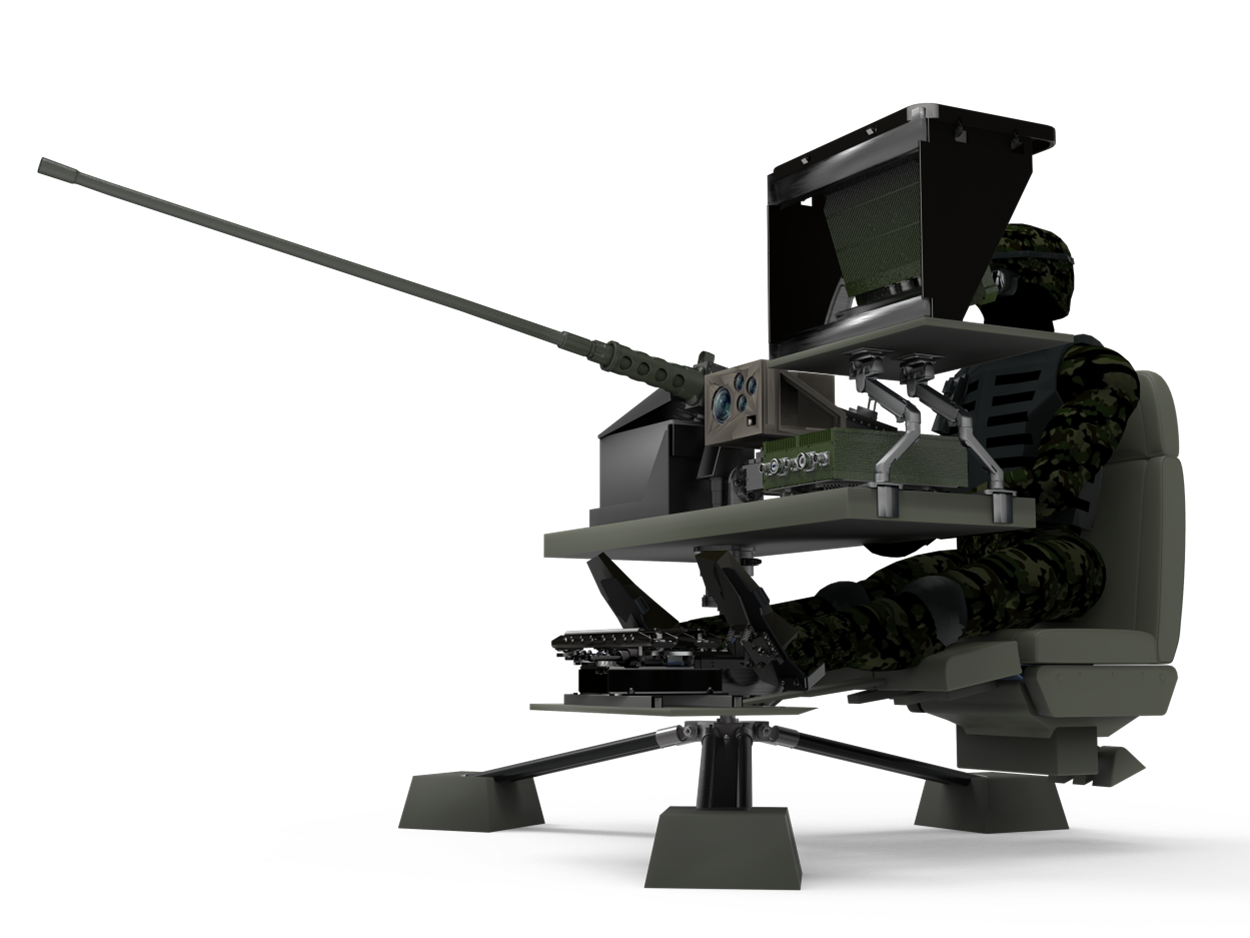

When the system is in night mode, the operator can use a hard key to reduce the brightness, lowering it to under 1% nits or switching to another customized night vision mode immediately. The display adjusts to low brightness right away when triggered, ensuring compatibility with night vision devices.
(3) MIL-DTL 38999
MIL-DTL-38999 is a high-performance cylindrical connector family engineered to withstand extreme shock, exposure, and vibration common in defense and aerospace applications. Featuring removable crimp or fixed hermetic solder contacts, these connectors offer high-vibration resistance and are well-suited for areas with severe wind and moisture conditions.
(4) G.F.G Resistive Touch Screen
GFG touch screens are compatible with fingers, pens, and gloves. Their glass surfaces make the glass-film-glass sensors highly durable and resistant to scratches (7H).
(5) Soft Touch Button
The SKY15-P20 is equipped with up to 20 programmable function keys, 3 OSD keys, 1 triple knob, and 1 rubber-tooled power button. Each key pad measures 16 x 16 mm, allowing operators to access functions even while wearing MOPP-level gloves.
(6) IP65 Certified
The SKY15-P20 offers full dust and water resistance, making it rugged and reliable for demanding military, ground army, and defense applications.
(7) MIL-STD 810 Compliance
The SKY15-P20 complies with MIL-STD-810 for shock, vibration, and more. It is rigorously field-tested to meet or exceed MIL-STD-810 standards for extreme temperatures, humidity, shock, and vibration.
(8) MIL-461/1275 EMI Filter
The SKY15-P20 is designed to meet MIL-STD-461 standards, protecting against vehicle and aircraft voltage surges, spikes, transients, and electromagnetic interference. This makes it ideal for the strictest military requirements, delivering optimal performance in harsh environments.
(9) Intelligent Heater
To ensure reliable boot-up in extreme cold environments, the SKY15-P20 is equipped with an intelligent heater that automatically controls the temperature.
(10) Waterproof Value
The SKY15-P20 is fully waterproof and designed to balance atmospheric pressure, ensuring reliable operation across varying altitude environments.
Specifications
15” TFT LCD Display & Resistor Touch screen |
||
---|---|---|
Resolution |
1024 x 768 |
|
Brightness |
Up to 1000 Nits |
|
Aspect Ratio |
4:3 |
|
Contrast Ratio |
≧900: 1 |
|
Touch Panel |
Glass-Film-Glass 5-Wire resistor touch panel |
|
System SPEC |
||
Dual Mode |
Day Mode: Ultra-Brightness 1000 nits; Night Mode: NVIS (Dimmable under 1% Nits) |
|
Function key |
20 user programmable function keys |
|
DC-IN |
9V~36V DC-IN, Option 28V DC |
|
Connectors |
||
DC-IN |
1 x Amphenol TV07RW-11-54P |
|
I/O ports | ||
X1 | 1 x VGA with MIL-38999 connector | |
X2 | 1 x DVI with MIL-38999 connector | |
X3 | 1 x USB2.0 with MIL-38999 connector | |
Applications |
||
Applications |
Marine, Naval, Ground and Airborne environment. |
|
Physical |
||
Dimension |
412 x 59 x 336 mm |
|
Weight |
12.35 kg (27.23 Ib) |
|
Chassis |
Aluminum Alloy, Corrosion Resistant. |
|
Finish |
Anodic aluminum oxide (Color Olive green) |
|
Ingress Protection |
IP65 Dust /water Proof |
|
MIL Compliance |
||
MIL-STD-810 (Operation Test) |
||
Low Temp. |
Method 502.5 Procedure 2 |
Exposure (24h x 3 cycle) at -10℃ min. |
High Temp. |
Method 501.5 Procedure 2 |
60ºC for 2 hrs after temperature stabilization. |
Humidity |
Method 507.5 Procedure 2 |
RH -95%. Test cycles: ten 24-hrs , functional test after 5th and 10th cycles |
Vibration |
Method 514.6 Category 20 |
10-500Hz 1.04Grms Test duration: 1 hr x 3 axis (total 3 hrs) |
Shock |
Method 516.6 Procedure 1 |
20G, 11mSec, 3 per axis |
MIL-STD-810 (Non-Operating Tests) |
||
Low Temp. |
Method 502.5 |
Exposure (24h x 7 cycle) at -20℃ min. |
High Temp. |
Method 501.5 Procedure 1 |
71ºC for 2 hrs after temperature stabilization. |
Vibration |
Method 514.6 Category 24 |
200 to 2000Hz Test duration: 1hr per axis; rms =7.7 gs |
Shock |
Method 516.6 Procedure 1 |
20G, 11mSec, 3 per axis |
MIL-STD-461 |
||
CE102 |
Basic curve, 10kHz - 30 MHz |
|
RE102-4, (1.5 MHz) |
(1.5 MHz) -30 MHz - 5 GHz |
|
RS103 |
1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, |
|
Environmental Qualifications |
||
---|---|---|
Regulatory |
CE, FCC Compliance |
|
Operation Temp. |
-40°C to +60°C |
|
Storage Temp. |
-40°C to +85°C |
|
Green Product |
RoHS, WEEE compliance |
Thermal Solution
20 Programmable function keys
STACKRACK ruggedized mission displays equipped up to 20 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.
Optical bonding
Sky15-P20 adopts optical bonding with protective glass (GFG), it can offer surface light reflection and panel reflection losses lower than 3% which enhance its readability where installed in high humidity outdoor environments
Heater
Monitor usually challenges in extended temperature operation, Sky15-P20 especially implements heater in the system that allow Sky15-P20 can operate smoothly under temperature-30 degree for critical environment application
MIL-461F power solution
In order to meet military grades,Sky15-P20 equips EMI filter power solution that enables to meet MIL-STD-461F standard for harsh environment demand.
