F40

F40 ATR 1/2 Short IP66 Air Borne Mission Computer

IP66 Air Borne Mission Computer, Operation Temp. -40°C to +60°C



  • IP66 Air Borne Mission Computer
  • 14th Gen Intel® Meteor Lake Core™ Ultra processor
  • 11th Gen Intel® Xeon W-11865MRE (8C/16T, 4.7Ghz)
  • 9th Gen Intel® Xeon E-2276ME (6C/12T, 4.5Ghz)
  • 14th Gen Platform Memory support up to DDR5-96GB
  • 11th/9th Gen Platform Memory support up to DDR4-128GB
  • Nvidia RTX MXM A2000 8GB GDDR6 memory 2560 CUDA cores
  • 1 x 2.5” Swappable SATA SSD Tray
  • MIL-STD-704/461/1275 10V~40V DC-Input for optional

Special Request :

  • Frame Grabber: 4 x 3G-SDI
  • Discrete IO: 4 x DI / 4 x DO
  • MIL-STD 1553 , ARINC 429

 Intel Partner 7STARLAKE

Download
Datasheet
Get A Quote
Introduction

ATR (Air Transport Rack) is a standard that specifies form fit and function of enclosures designed to protect the main internal system. This military enclosure must meet EMI / EMC requirements to prevent noise interference, provide lightning protection and be isolated from small particle contaminants. So, it can be deployed in unmanned aerial vehicles, fighters, and helicopters. To satisfy diverse conditions, ATR chassis are available in different sizes—1/2, 3/4 and Full ATR sizes. Based on 1/2 ATR size, 7Starlake launches a new Rugged Airborne Mission Computer F40.

F40





ARINC 429

ARINC 429 is the worldwide standard for data transmission in aircraft electronics. It is adopted mostly for commercial aircraft and transport aircraft network protocol standard. Communications, guidance, altitude, altitude reference, flight management, and more are all needed to work together to accomplish a successful flight. The physical connection wires are twisted pairs carrying balanced differential signaling.

The ARINC 429 unit of transmission is a fixed-length 32-bit frame, which the standard refers to as a 'word'. The bits within an ARINC 429 word are serially identified from Bit Number 1 to Bit Number or simply Bit 1 to Bit 32.

ARINC 429
MIL-STD 1553

MIL STD 1553 is US Military Department of Defence standard that was initially published in 1973.

MIL STD 1553 is a differential serial bus. Also, it is a dual redundant data bus.  Each node is connected to each of the redundant buses.  Secondly, if one should fail, communications can still continue.

There are three types of operating nodes for 1553 Bus:

•A Bus Controller initiates all messages, traffic and commands the remote terminals to transmit/receive data.
•Remote Terminal interfaces the 1553 Bus and Sub System Bridge to other 1553 Buses.  It responds to the bus controller.
•The Bus Monitor listens to messages and records them.

MIL-STD 1533

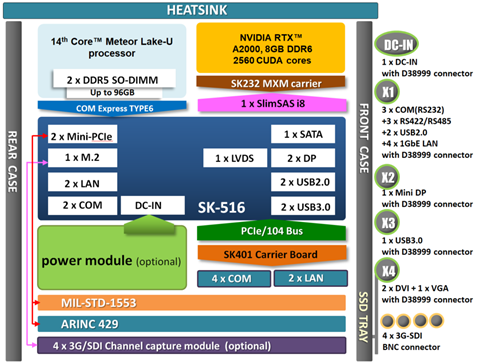

F40-MP-block-diagram

F40-MP

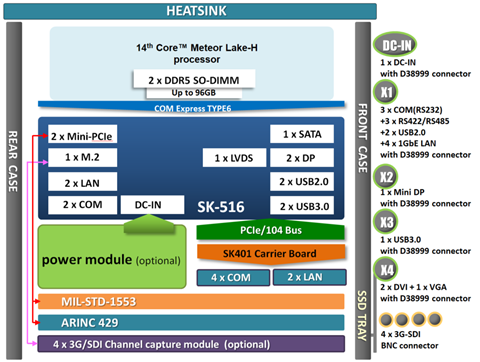

F40-MH-block-diagram

F40-MH



Features

Computing Features

  • Intel® Core™ Ultra 7 165H
  • Intel® Core™ Ultra 7 155U
  • 11th Gen Intel® Xeon W-11865MRE
  • 9th Gen Intel® Xeon E-2276M
  • 14th Gen Memory support up to DDR5-96GB
  • 11th/9th Gen Memory support up to DDR4-128GB
  • IP65 Chassis with D38999 connectors
  • High performance with lower power efficiency
  • 1 x M.2, 2 x Full Size Mini PCIe

F40

I/O and Expansion Options

  • X1: 3 x RS232 + 3 x RS422/RS485 + 2 x USB 2.0 + 4 x 1GbE LAN with 100 PIN D38999 connector
  • X2: 1 x USB3.0 with USB3.0 D38999 connector
  • X3: 1 x Mini DP with D38999 connector
  • X4: 2 x DVI +1 x VGA with 50PIN D38999 connector
  • X5: 1 x DC in with D38999 connector
  • Others : 1 x 2.5” Easy swap HDD/SSD Tray
  • 4 x 3G-SDI connectors

Environment

  • MIL-STD 704/461/1275 wide range 10-40V DC power module
  • MIL-STD 810 Thermal, Shock, Vibration, Humidity
  • Operates up to extended temp -40°C to +60°C



System

F40-MH

F40-MP

F40-TH

F40-CH

Intel® Core™ Ultra 7 165H 20-65W, Meteor Lake-H 14Gen, 16C(6P+8E+2LPE), Freq. 0.9/1.4 Max 3.8/5.0 GHz, 24MB cache

Intel® Core™ Ultra 7 155U 12-28W, Meteor Lake-U 14Gen, 12C(2P+8E+2LPE), Freq. 1.2/1.7 Max 3.8/4.8 GHz, 12MB cache

Intel® Xeon® W-11865MRE Processor (up to 4.70 GHz), 45W, 8C/16T

Intel® Xeon® E-2276ME Processor (up to 4.50 GHz), 45W, 6C/12T

14th Memory type

11th/9th Memory type

2 x DDR5 SO-DIMM up to 96GB 5600MHz

Support up to DDR4-128GB, ECC for Xeon SKU

Graphic

Intel® Iris® Xe Graphics eligible
GPU (optional)

NVIDIA RTX™ MXM A2000 GA107-980 GPU

8GB GDDR6 memory, 2560 CUDA cores

BIOS

AMI UEFI BIOS

ARINC 429 (optional)

6 Channels of ARINC-429

Channels: 4 RX/TX and 2 RX Only Channels. w/ mini-PCIe card

(Alta-dt MPCIE-A429)

MIL -1553 (optional)

1-2 INDEPENDENT,

DUAL REDUNDANT (A/B) MIL-STD-1553 CHANNELS w/ mini-PCIe card

(Alta-dt MPCIE2-1553)

TPM

TPM 2.0

Mini PCIe

2 x Full size

Ethernet

2 x I226-LM 2.5 GbE

Power Type

10V ~ 40V DC-IN

Storage

1 x 2.5” Easy swap HDD/SSD Tray

DIO

4 x DI / 4 x DO

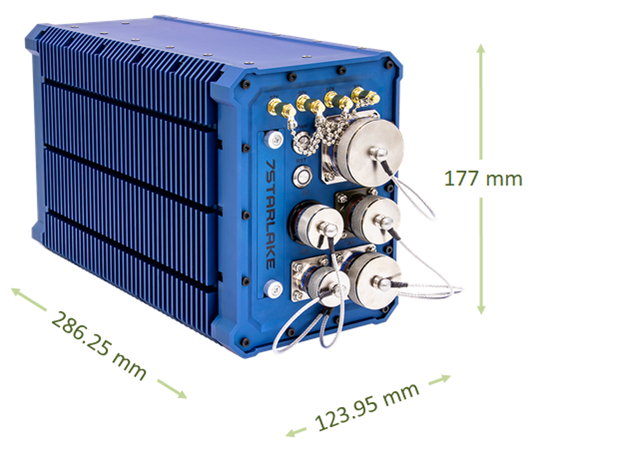

Dimensions

123.95(W) x 177(L) x 286.25(H) mm

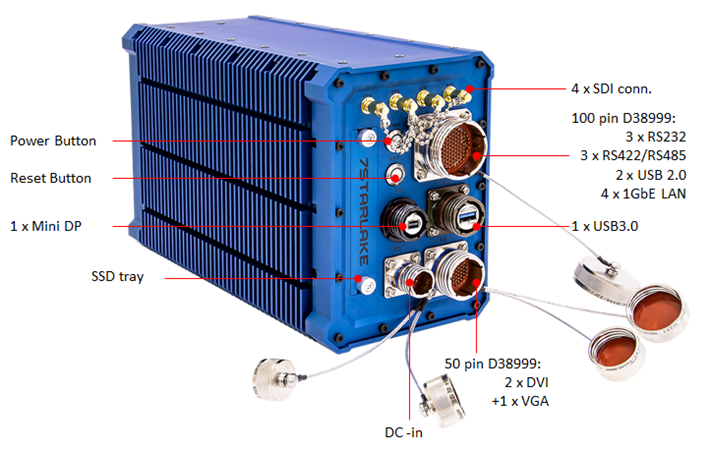

FRONT I/O

X1 (configurable)

3 x RS232 + 3 x RS422/RS485 + 2 x USB 2.0 + 4 x 1GbE LAN

with 100 PIN D38999 connector

X2

1 x USB3.0 with USB3.0 D38999 connector

X3

1 x Mini DP with D38999 connector

X4 (configurable)

2 x DVI/DP +1 x VGA with 50PIN D38999 connector
X5 1 x DC in with D38999 connector

others

1 x 2.5” Easy swap HDD/SSD Tray

4 x 3G-SDI BNC connectors

Environmental
Green Product RoHS, WEEE compliance
Operating Temperature -40°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95%, non-condensing

MIL-STD-810 Test



Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

Method 507.5, Procedure II (Temperature & Humidity)

Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)

Method 514.6, Vibration Category 20/Operating (Category 20 & 24, Vibration)

Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock)

Method 516.6, Shock-Procedure I Operating (Mechanical Shock)

Reliability

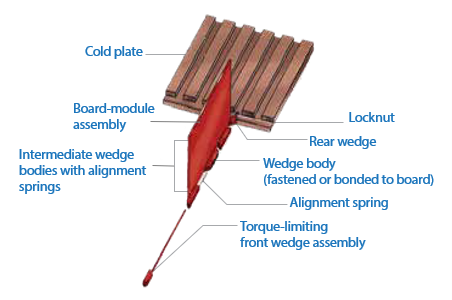

No Moving Parts; Passive Cooling.

Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program.
MIL-STD-1275 (optional)

Steady State: 20V - 33V

Surge Low: 18V/500ms

Surge High: 100V/500ms

MIL-STD-461 (optional)

CE102: 10 kHz - 30 MHz

RE102-4: 1.5 MHz - 30 MHz - 5 GHz

RS103: 200 MHz - 3.0 GHz - 5.0 GHz, 50 V/m equal for all frequencies

F40-MP
Intel® Core™ Ultra 7 155U, DDR5 Up to 96GB, NVIDIA MXM RTX A2000 8GB, 1 x 2.5” SATA III SSD, 10V ~ 40V DC-IN
F40-MH
Intel® Core™ Ultra 7 165H, DDR5 Up to 96GB, 1 x 2.5” SATA III SSD, 10V~40V DC-IN
F40-TH
Intel® Xeon™ W-11865MRE (8C / 16T, 4.7 Ghz), DDR4 Up to 128GB, 1 x 2.5” SATA III SSD, 10V~ 40V DC-IN
F40-CH
Intel® Xeon™ E-2276ME (6C / 12T, 4.5 Ghz), DDR4 Up to 128GB, 1 x 2.5” SATA III SSD, 10V~ 40V DC-IN
