AV600-RH-AB
Military IP65 Sensors Fusion GPU Computer
- Military Sensors Fusion GPU Computer
- Intel® 13th Raptor Lake-H Core® I7-13800 HRE (14C, 5.2Ghz)
- Up to 96GB DDR5 5200MHz
- NVIDIA RTX™ A2000 , 2,560 CUDA cores
- 18V~36V DC-DC
- Extreme Temperature : -20°C to +60°C Degree
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 40G
- Technical Profile
- Specifications
- Download
Introduction
AV600RH is driven by Intel® 13th Raptor Lake-H Processors, integrated Intel® Iris® Xe Graphics eligible. Raptor Lake H processor is built on Inter 7 SuperFin Technology, up to CPU cores and 5.0 GHz frequency. It is high computing performance and flexibility for heavier IoT workloads, the platform posts significant performance gains gen-over-gen with up to 32 percent gain in single-thread performance. It also features in high-bandwidth, high speed I/Os for expansion and peripherals.
AV600RH highlights on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP66 protection allow system withstand in any kind of harsh environment. AV600RH supports extended temperature from -40°C to 70°C and MIL-STD-461 18V~36V DC-input Power supply which can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.

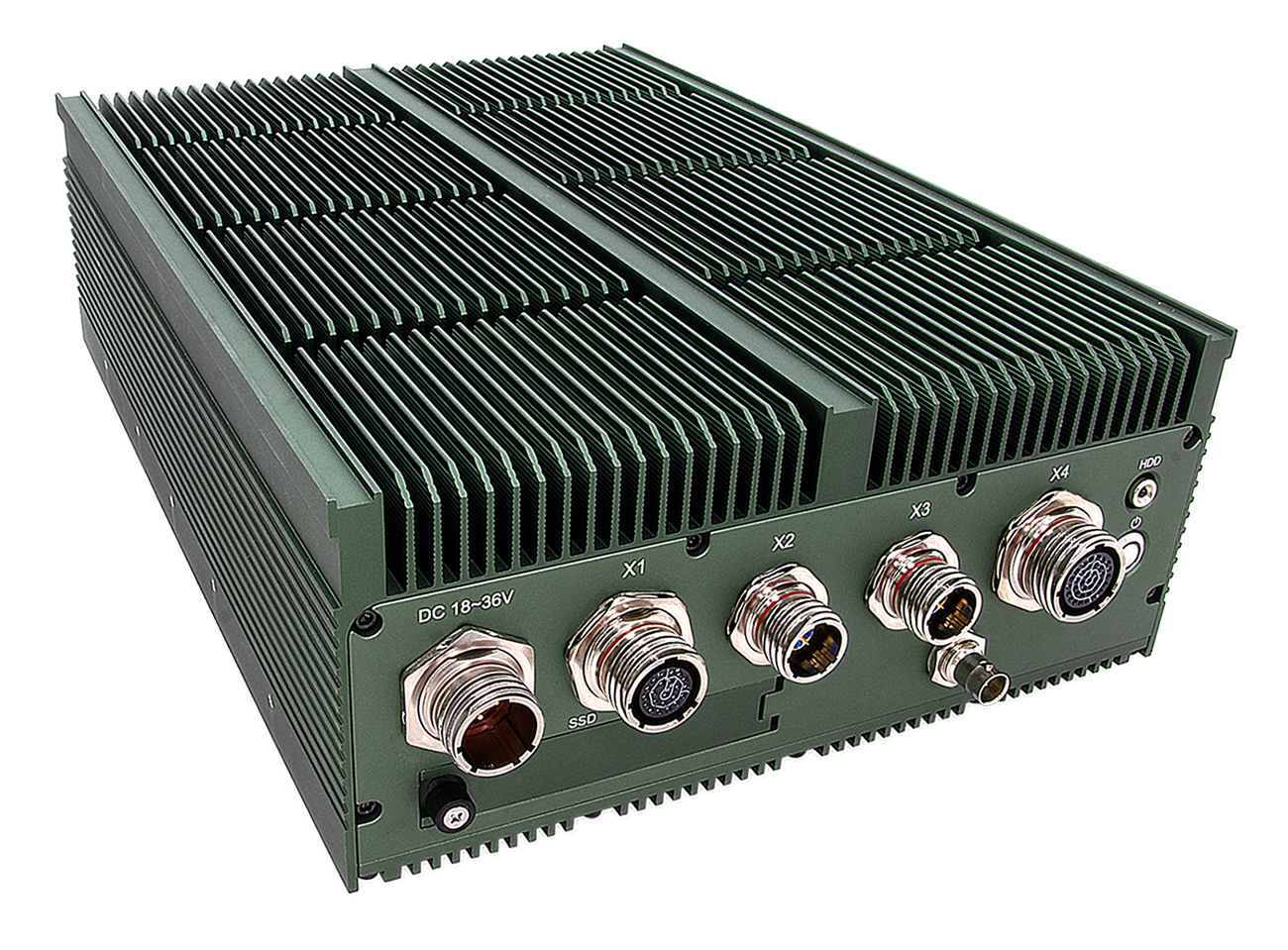

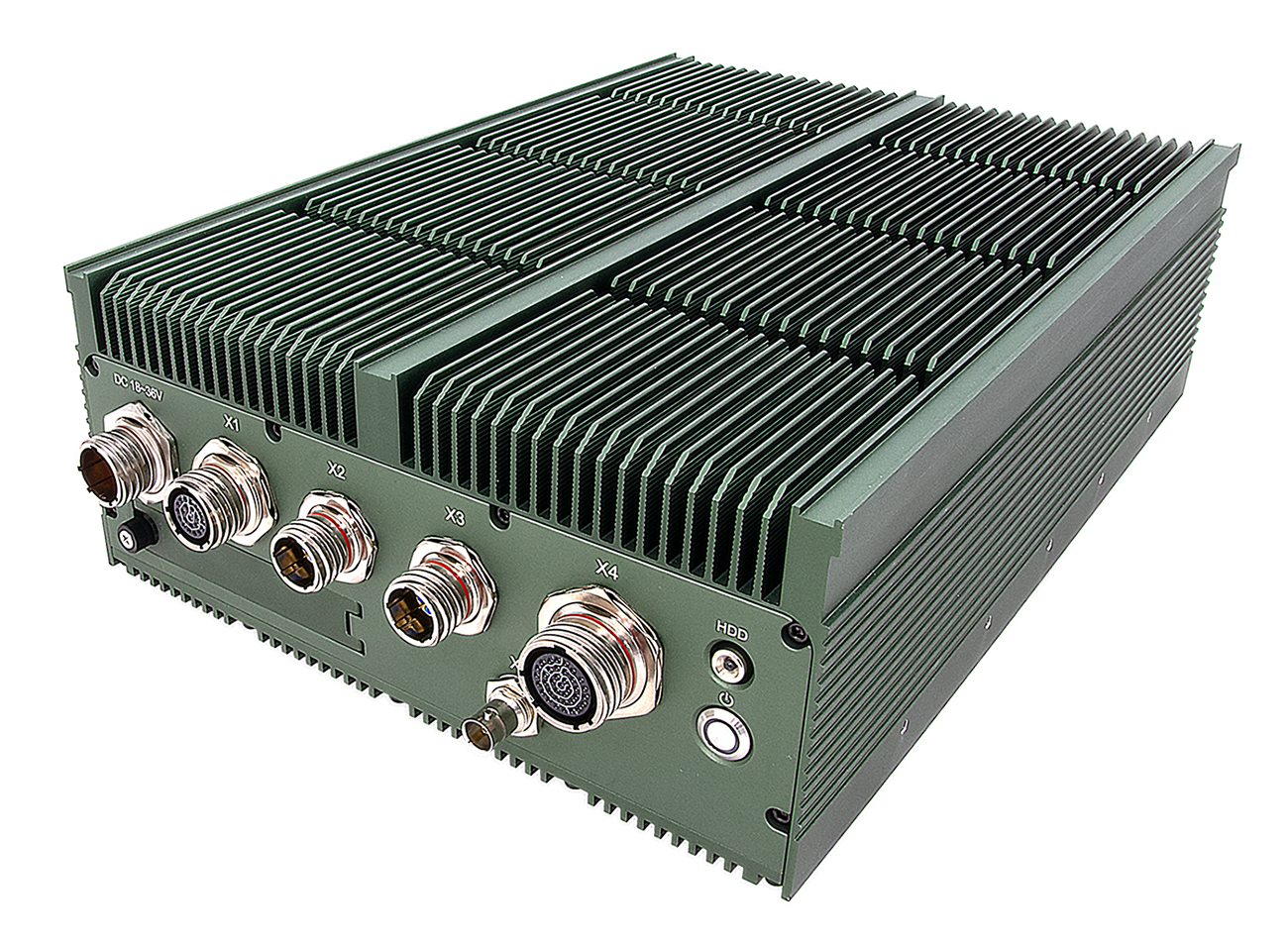

Appearance
Block Diagram
|
System |
||
|---|---|---|
|
CPU |
Intel® 13 Gen. Raptor Lake-H Processors, up to 14 cores, integrated Intel® Iris® Xe Graphics eligible - Intel® Core® i7-13800HRE, 45W Raptor Lake 13th Gen, 14C/20T, Freq. 2.5/5 GHz, 24MB cache |
|
|
Memory type |
Up to 96GB DDR5 5600Mbps SO-DIMM, non-ECC |
|
|
GPU |
NVIDIA RTX™ A2000 4GB GDDR6 memory, 2560 CUDA cores NVIDIA RTX™ A4500 16GB GDDR6 memory, 5888 CUDA cores (Options) |
|
|
Expansion Slot |
2x Full-size mini PCIe (with SIM card slot) 1x M.2 2280 M key (PCIe x4 both) 1x SATA III |
|
|
Storage |
||
|
SATA |
1x 2.5” 512GB SSD, Hot Swappable SSD/HDD slot |
|
|
M.2 |
1x M.2 2280 M key SSD (Options) |
|
|
Ethernet |
||
|
Ethernet (Internal) |
2x 10/100/1000/2.5G Ethernet Ports (One from CPU module) |
|
|

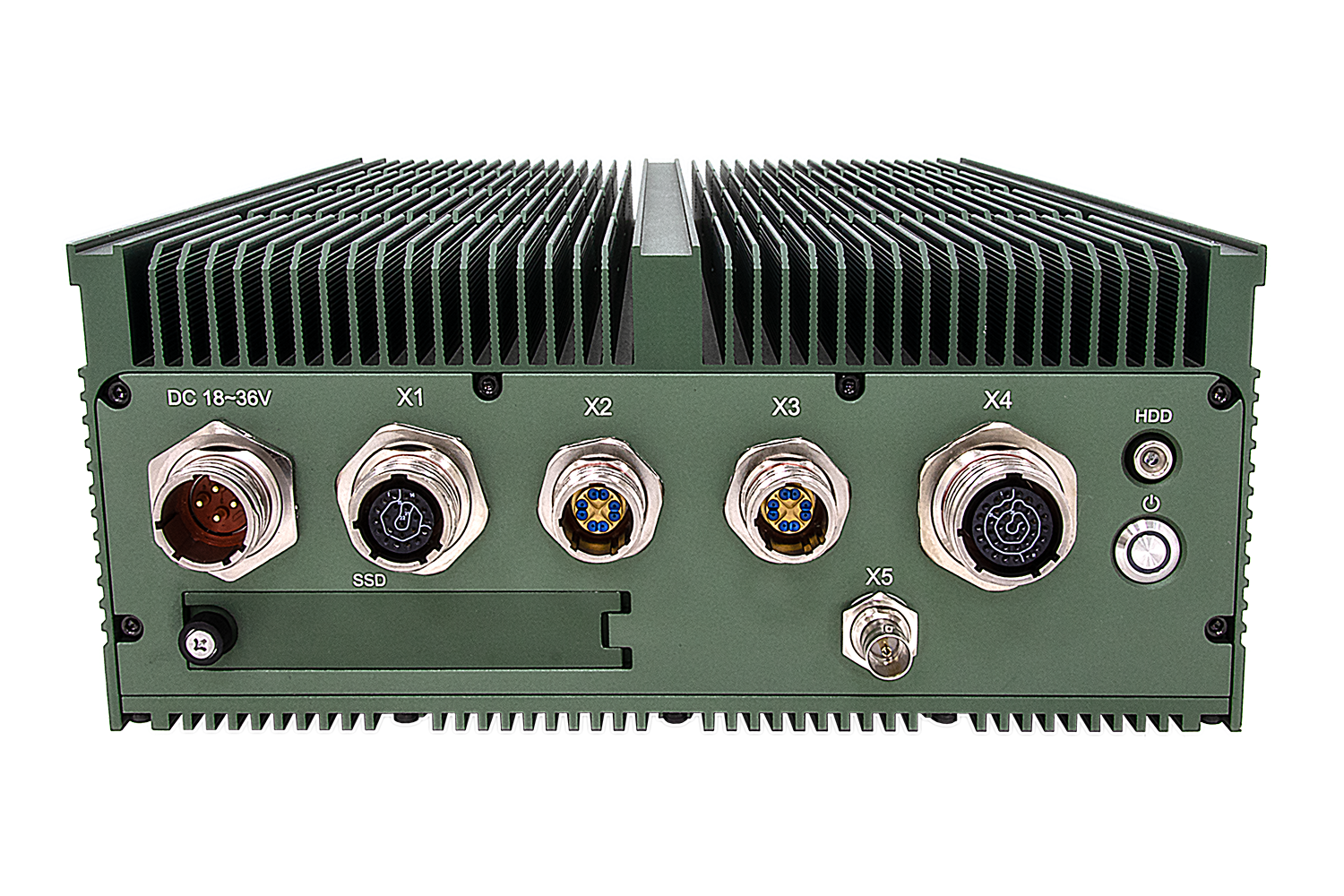

Front I/O |
||
| DC-IN | 1x DC-IN with D38999 connector | |
| X1 | 1x DVI with D38999 connector | |
| X2 | 1x USB3.0 with D38999 pin type connector | |
| X3 | 1x USB3.0 with D38999 pin type connector | |
| X4 | 1x GbE LAN + 2x COM(RS232) with D38999 connector | |
| X5 | 1x 3G-SDI with BNC connector | |
| LED | 1x SSD/HDD LED indicator | |
| Switch | 1x IP65 Power Button, with LED back light | |
| SSD | 1x 2.5" Easy Swap SSD Tray | |
|
Power |
||
|
Power input |
18V~36V DC-Input |
|
|
Application, Operating System |
||
| Application | Military Platforms Requiring Compliance to MIL-STD-810 Where Harsh Temperature, Shock, Vibration, Altitude, Dust and MIL-461 EMI Conditions. | |
| Operating System | Windows® 10/11 64-bit / Linux (support by request) | |
|
Physical |
||
|
Dimension |
250 x 350 x 105 mm (WxLxH) |
|
|
Weight |
9.8 KG |
|
|
Chassis |
Aluminum Alloy |
|
|
Heatsink |
Heatsink Aluminum Alloy with Air Cooler, Corrosion Resistant |
|
|
Environmental |
||
|
Green Product |
RoHS, WEEE compliance |
|
|
Operating Temp. |
-20°C to +60°C |
|
|
Storage Temp. |
-40°C to +85°C |
|
|
Relative Humidity |
5% to 95%, non-condensing |
|
| MIL-STD-810 | Method 507.5, Procedure II ( Temperature & Humidity ) Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) Method 501.5, Procedure I ( Storage/High Temperature ) Method 501.5, Procedure II ( Operation/High Temperature ) Method 502.5, Procedure I ( Storage/Low Temperature ) Method 502.5, Procedure II ( Operation/Low Temperature ) Method 503.5, Procedure I ( Temperature shock ) |
|
| Reliability | No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program. |
|
| Designed to Meet Items ( Options ) | ||
| MIL-STD-1275 | Steady State : 20V-33V | |
| Surge Low : 18V/500ms | ||
| Surge High : 100V/500ms | ||
| MIL-STD-461 | CE102 : 10 KHz - 10 MHz RE102-4 : 1.5 MHz -30 MHz - 5 GHz RS103 : 200 MHz - 3.0 GHz - 5.0 GHz, 50 V/m equal for all frequencies |
|
| Attachment | Size |
|---|---|
| AV600-RH-AB Performance Test Report 2025.pdf (8.16 MB) | 8.16 MB |
| TMXD2503000778DE (7Starlake) EN 55032&35.pdf (10.16 MB) | 10.16 MB |
| Verification - CE.pdf (168.41 KB) | 168.41 KB |
