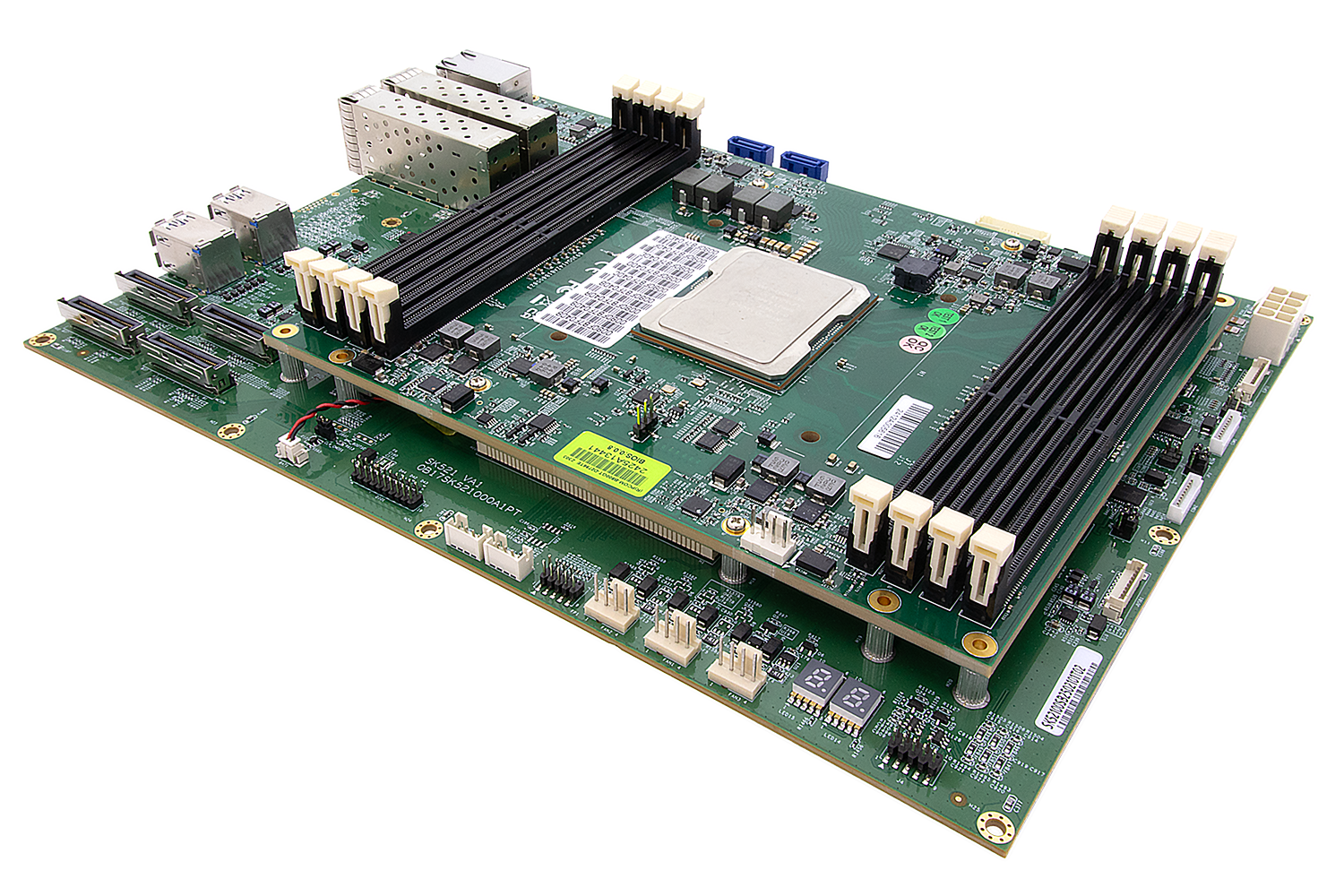

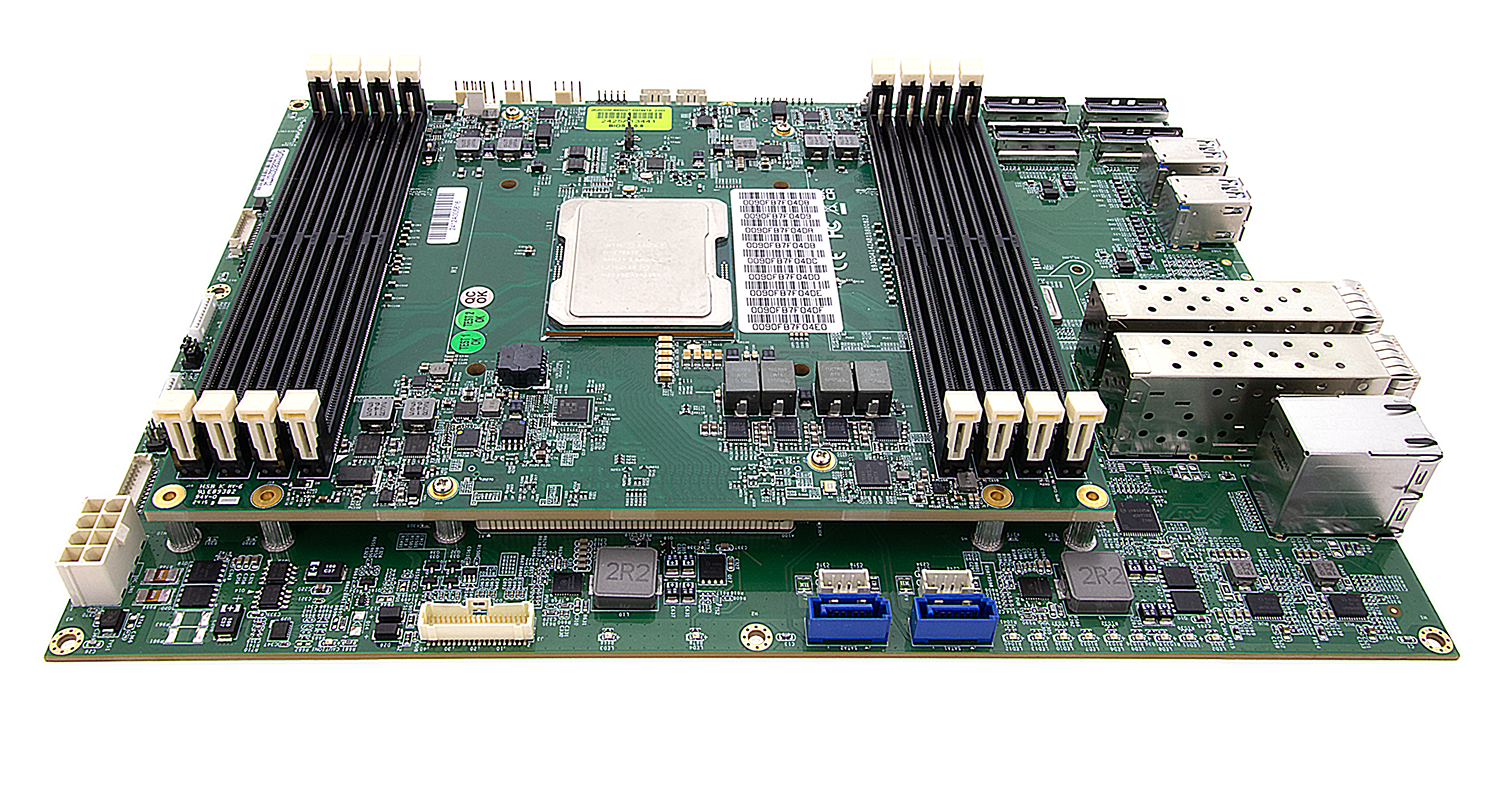

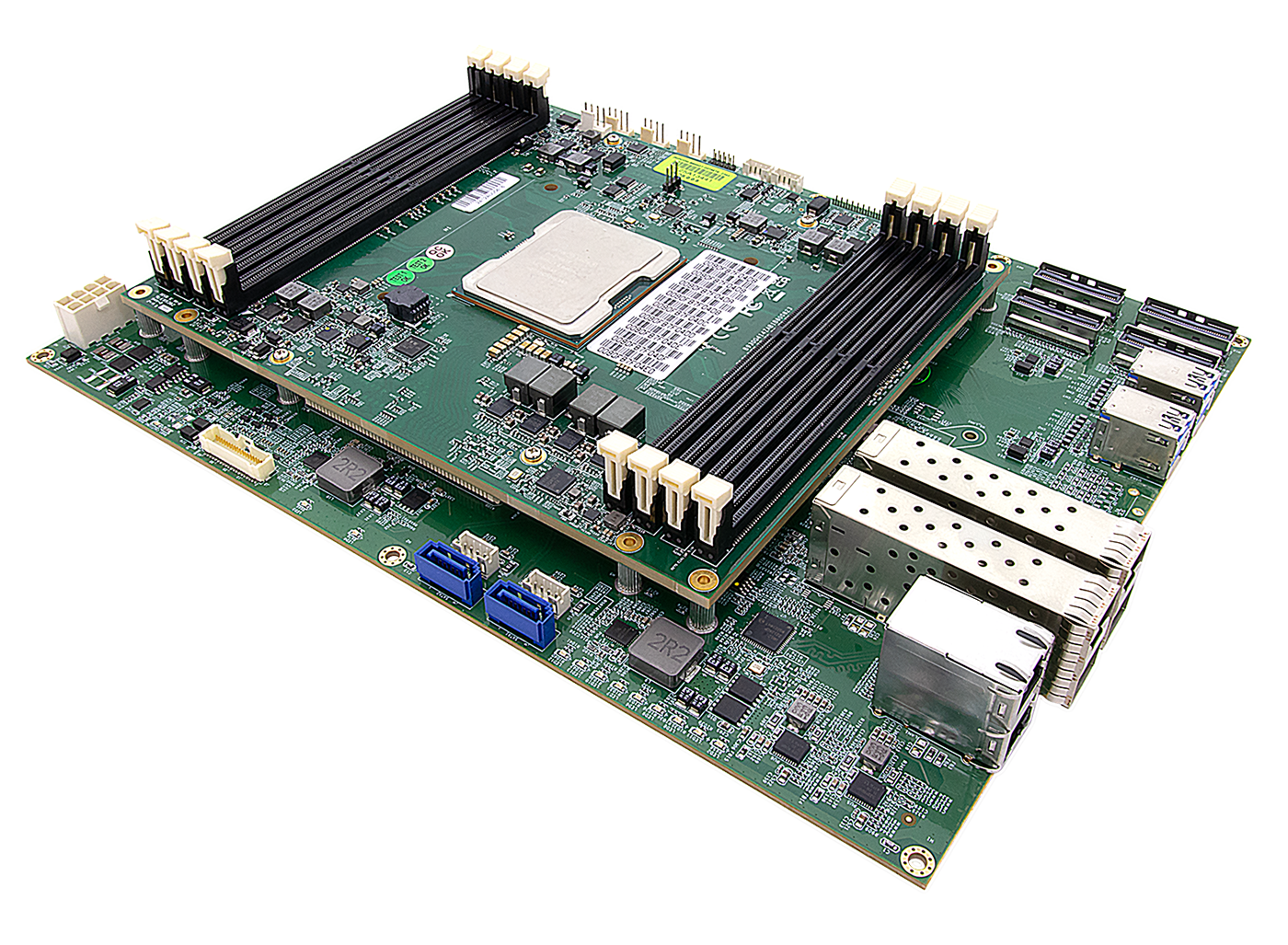

SK521-D27
COH-HPC Server Type D Carrier Board with MXM, MCIOs Expansions
- COM-HPC Server (D) Support Intel ICE-Lake D HCC
- MXM GPU Expansion Slot for Rugged StackPC
- Multi-Expansion Slots :
- 4x MCIO(Vertical) (4 x PCIe Gen4 x8)
- 1x mPCIe(Full Size)
- 1x M.2 2280 M-Key(PCIe Gen4 x 4)
- I/O : 2x GbE, 4x 10GbE, 2x SATAIII, 2x COM(RS232), 4x USB3.0, 2x USB2.0, 1x DIO(6in/6out)
- 12V DC Input
- Extreme Temperature -40°C to 85°C
- Technical Profile
- Specifications
- Order Information
Technical Profile
Introduction

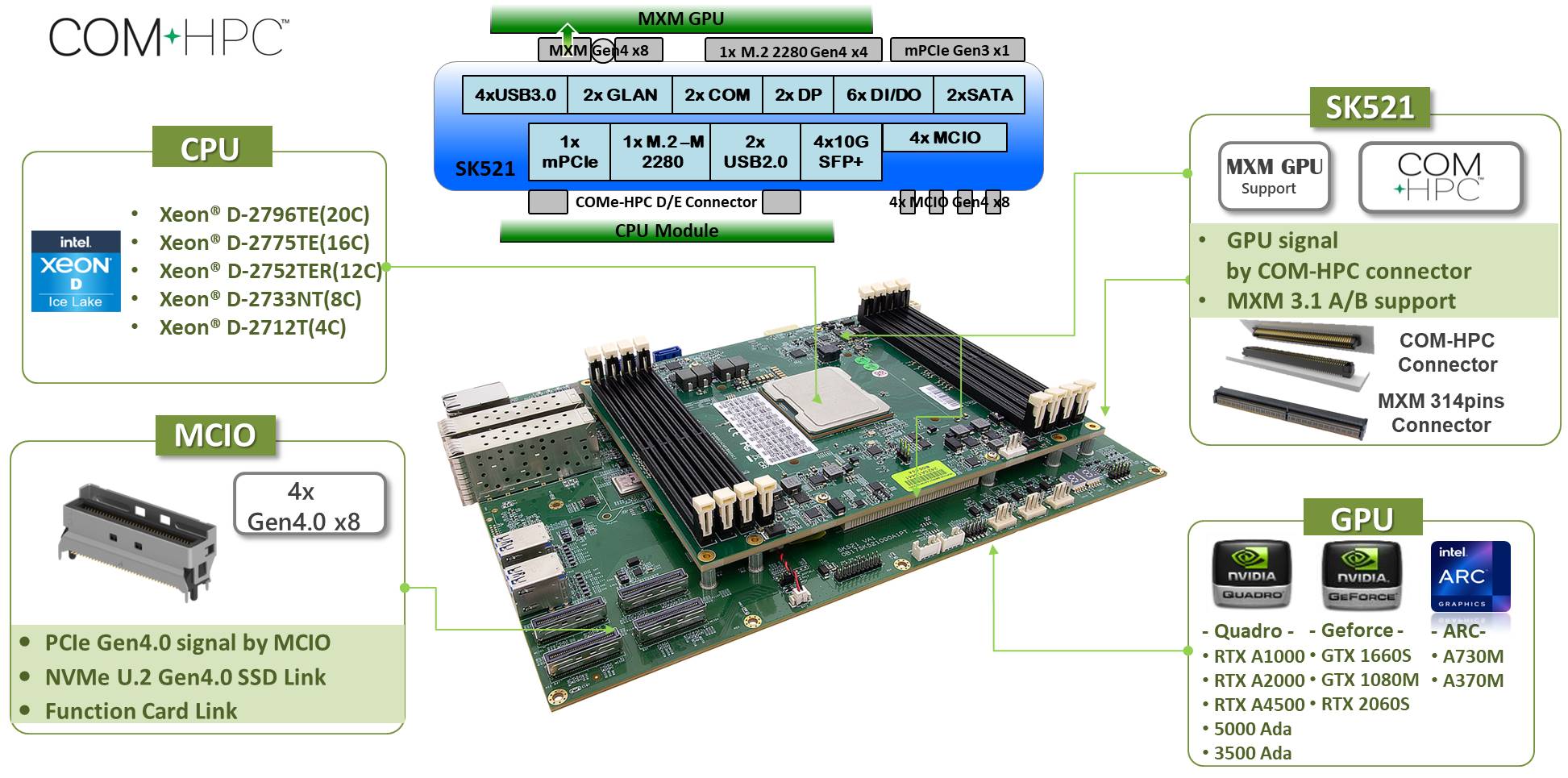

In the ever-evolving landscape of high-performance embedded computing, a groundbreaking leap forward takes center stage: meet the 7StarLake COM-HPC Server Size D Solution SK521. This revolutionary marvel, propelled by the formidable Intel Xeon D HCC processor (20 Cores) and the powerhouse Nvidia RTX A4500 MXM (5,888 CUDA Cores), transforms the essence of your computing journey. Redefining the boundaries of server-class computing power, the SK518 effortlessly navigates through compute-intensive workloads in AI Targeting and Vision analysis, swiftly processing vast unstructured data within tight timelines.
What truly distinguishes the SK521 is its capacity to support up to 4x 10GbE, creating a seamless web that interconnects computing nodes and sensors with virtually zero latency—ensuring your projects operate at the speed of thought. Yet, there's more: boasting an exceptional blend of MXM GPU architecture, one M.2 expansion slots, and four MCIO interfaces (4x PCIe Gen4 x8), the SK521 offers unparalleled flexibility, empowering you to shape fully-featured projects in ways previously unimaginable. Step into the future of embedded computing with the SK521 and elevate your possibilities.
- Raw Power, Unmatched Performance
-
Intel Ice Lake Xeon D HCC processor
Empower your projects with the SK521's Xeon D 20 Cores processor and 512GB DDR4 memory, delivering unparalleled computational throughput. Ideal for AI-targeting and object detection, experience unmatched efficiency in handling demanding workloads.

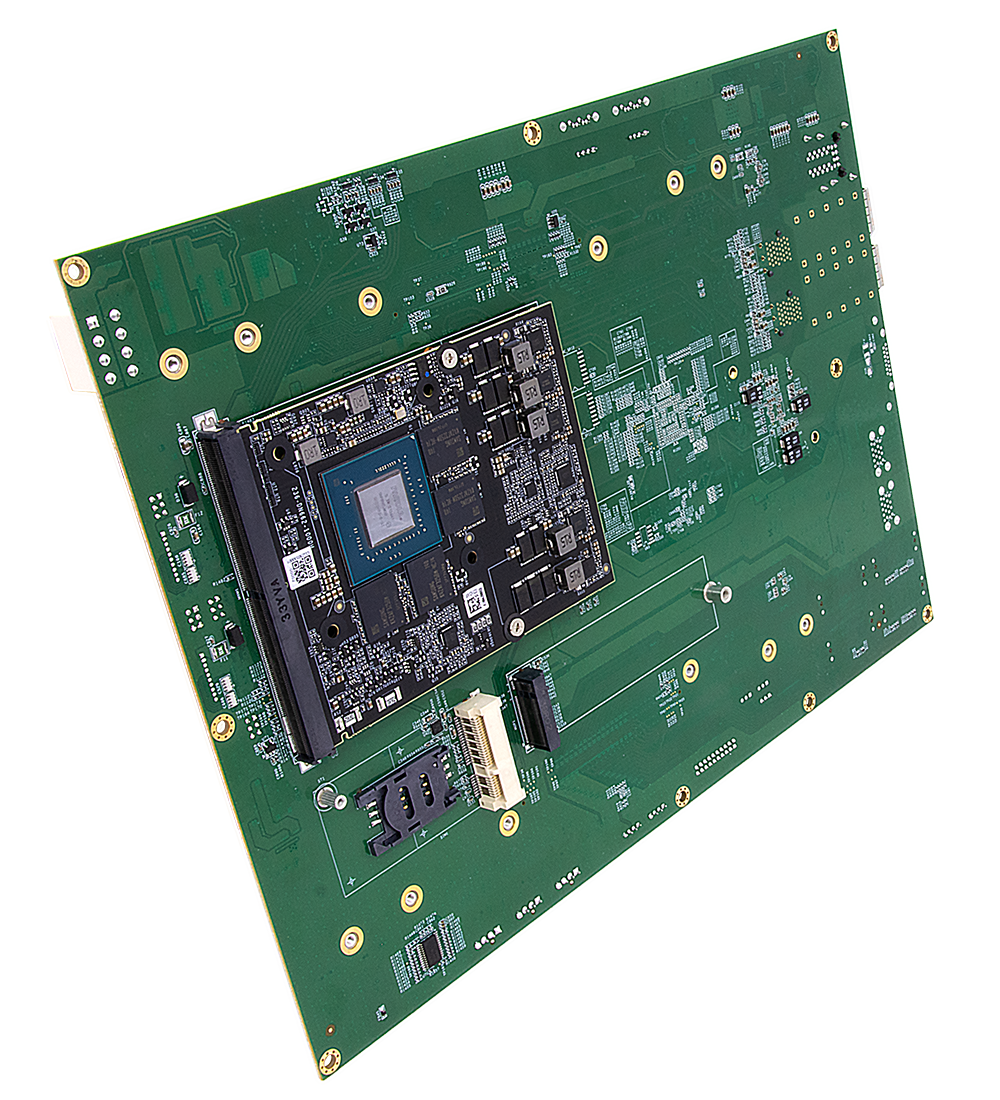

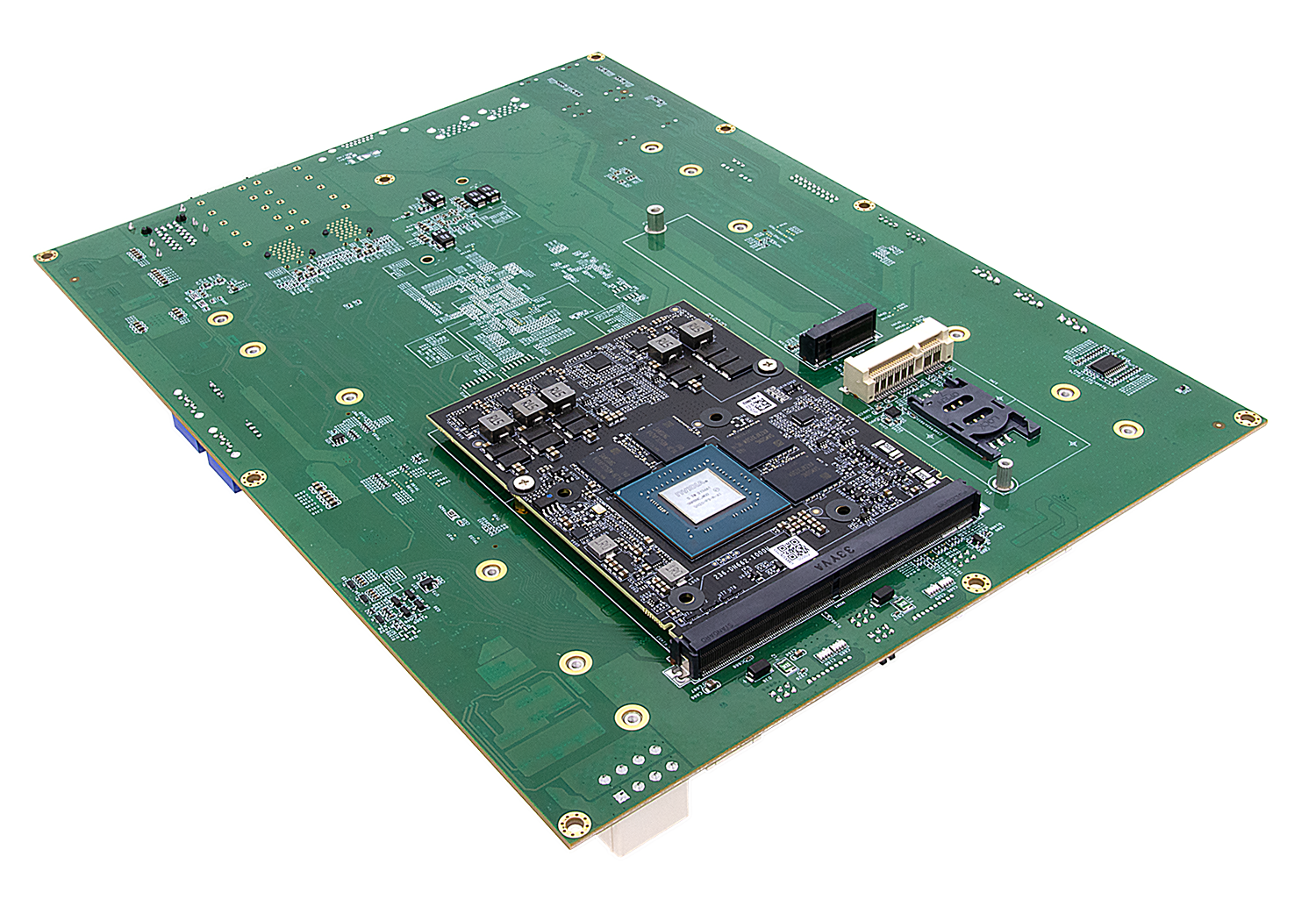

Nvidia GA104-based RTX A4500 MXM
Elevate data processing with the SK521's Nvidia GA104-based MXM, housing up to 5,888 CUDA Cores. From EO/IR to thermal cameras and 3D radar, the SK518 excels in transforming visual data into actionable insights for superior project outcomes.
Specifications
|
System |
|
|---|---|
|
CPU |
Intel ICE-Lake HCC D-2700 Series : D-2796TE, 20C / 40T, 2.0/3.1GHz, 30M Cache, TDP : 118W D-2775TE, 16C / 32T, 2.0/3.1GHz, 25M Cache, TDP : 100W D-2752TER, 12C / 24T, 1.8/2.8GHz, 20M Cache, TDP : 77W |
|
Memory type |
DDR4 R-DIMMs up to 512GB; LR-DIMMs up to 1024GB |
|
Storage |
MCIO/M.2/SATA interface |
|
Watchdog |
On CPU module : |
|
Expansion Slot |
|
|
MCIO(Vertical) |
4x (4x PCIe Gen4x 8) |
|
MiniPCIe(Full Size) |
1x (PCIe Gen3x 1) |
|
M.2 |
1x (M.2 2280 M-Key)(PCIe Gen4x 4) |
|
MXM |
1x MXM GPU slot |
|
Display |
|
|
DP |
2x (From MXM) |
|
Ethernet |
|
|
Chipset |
1x Intel® I210iT 1x C827-AM |
|
External I/O |
|
|
VGA |
1x (Option) |
|
USB3.0 |
4x |
|
10GbE |
4x |
|
GbE |
2x (One from CPU Module) |
|
Internal I/O |
|
|
USB2.0 |
2x (Header) |
|
DIDO |
1x (6in/6out) |
|
SATAIII |
2x |
|
SATA Power |
2x |
|
Serial |
2x (RS232) |
|
I2C |
1x |
|
System Fan |
1x |
|
CPU Fan |
1x |
|
Front Panel Control |
1x |
|
Power Connector |
1(2 x 4-pin terminal block) |
|
Mechanical and Environmental |
|
|
Form Factor |
COM-HPC Carrier Server Type D |
|
Power Type |
DC-IN 12V |
|
Dimension |
280mm x 210mm |
|
Operating Temperature |
-40°C to 85°C |
|
Storage Temperature |
-40°C to 85°C |
|
Relative humidity |
10% to 90%, non-condensing |
|
Standard Compliance |
|
|
Standard Compliance |
CE/FCC |
|
OS |
|
|
OS |
Windows 10 IoT Enterprise LTSC; Windows Server 19H1/2, 20H1; Linux Red Hat 7.6 or latest; Ubuntu19.04 or latest VMWare ESXi; Windows Hyper-V: Windows Server 19H1/2, 20H1 |

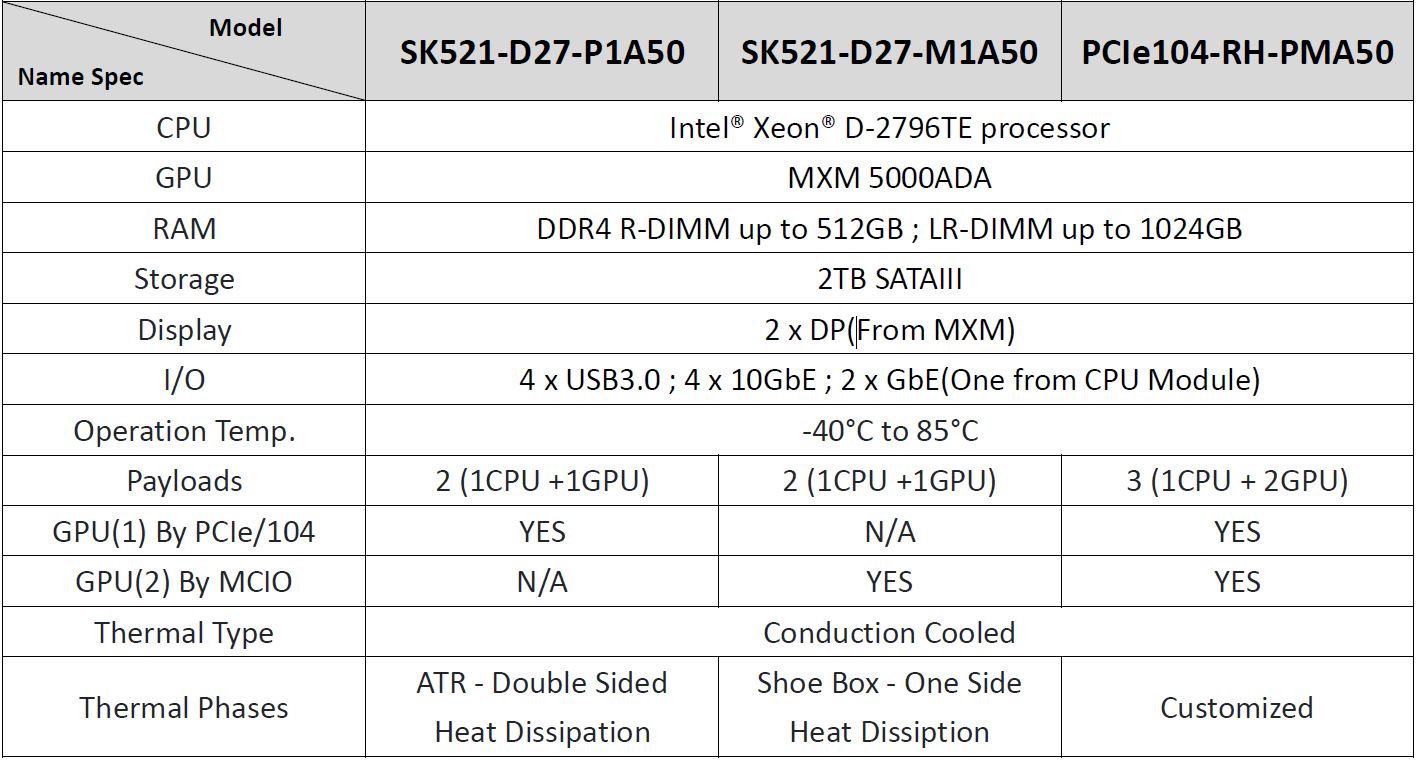

Order Information
